The VRS Verification and Repair Station (ACF-QC-04) is a machine used during optical inspection, part of the inspection and quality control equipment stage of PCB manufacturing. It balances precision, uptime and ease of maintenance for high-mix production.

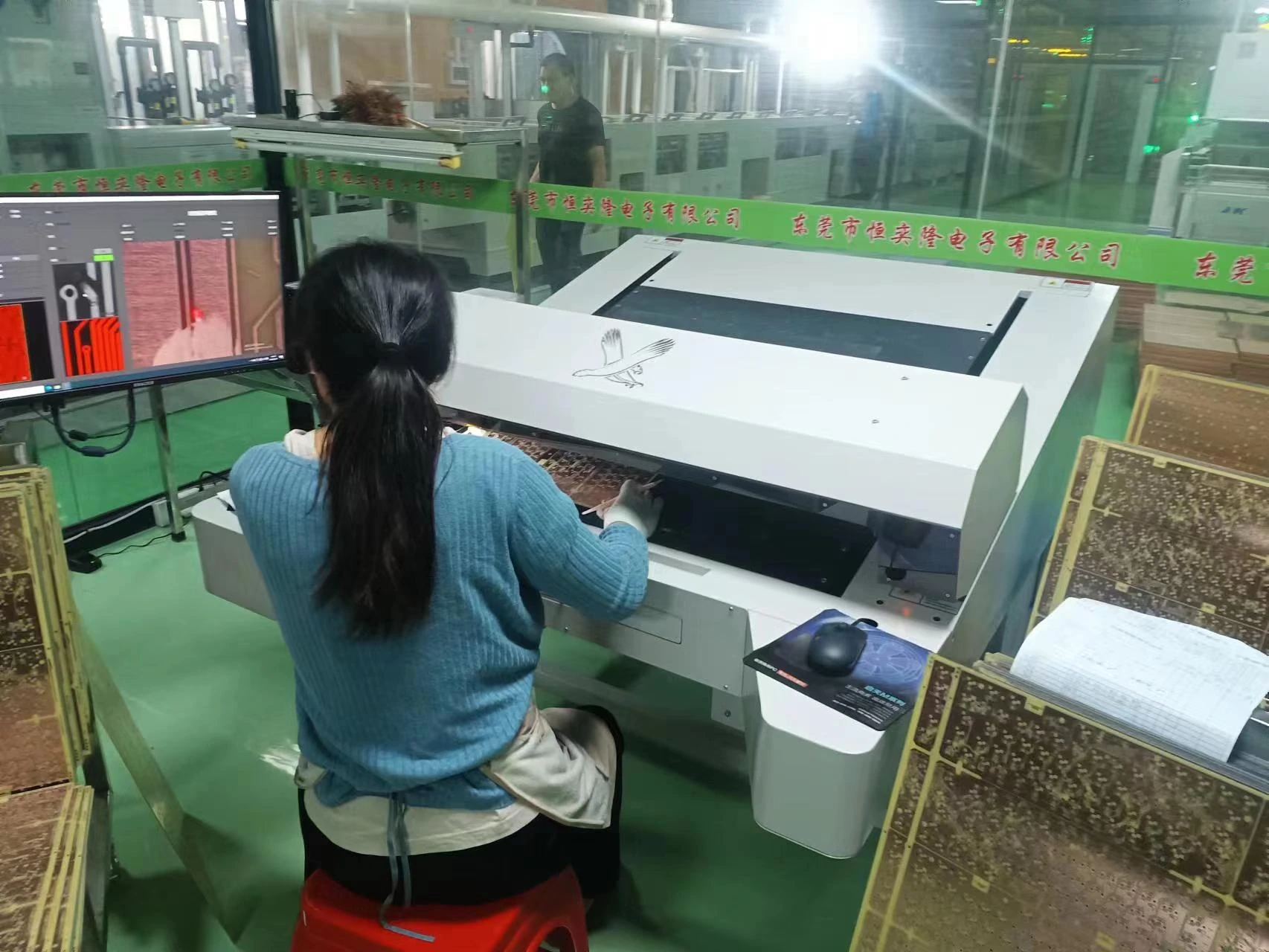

VRS Verification and Repair Station (ACF-QC-04)
Where the VRS Verification and Repair Station Fits in PCB Manufacturing
In a PCB production line, the VRS Verification and Repair Station operates in the optical inspection area of inspection and quality control equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Fast handling for inline inspection at production speed.
Recipe management and process logging via the plc + hmi touchscreen.
Supplied as semi-automatic, with options for line integration.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Typical Applications
Used for inner-layer and final inspection and electrical test across high-reliability and high-volume production.
Integration and Configuration
The VRS Verification and Repair Station can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The VRS Verification and Repair Station is a non-standard, configured-to-order system. Pricing starts from approximately US$35,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the VRS Verification and Repair Station
Tell us your requirements for the VRS Verification and Repair Station (ACF-QC-04) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the VRS Verification and Repair Station used for?
The VRS Verification and Repair Station is used in the inspection and quality control equipment stage of PCB manufacturing, specifically for optical inspection. It is designed for consistent, production-grade results.
Which board types does the VRS Verification and Repair Station support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
Is the VRS Verification and Repair Station automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the VRS Verification and Repair Station achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the VRS Verification and Repair Station controlled?
The VRS Verification and Repair Station uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the VRS Verification and Repair Station?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
