ACF-QC-01 is a AOI Machine — PCB production equipment for the optical inspection process within inspection and quality control equipment. It is built for process stability, throughput and operator safety on the factory floor.

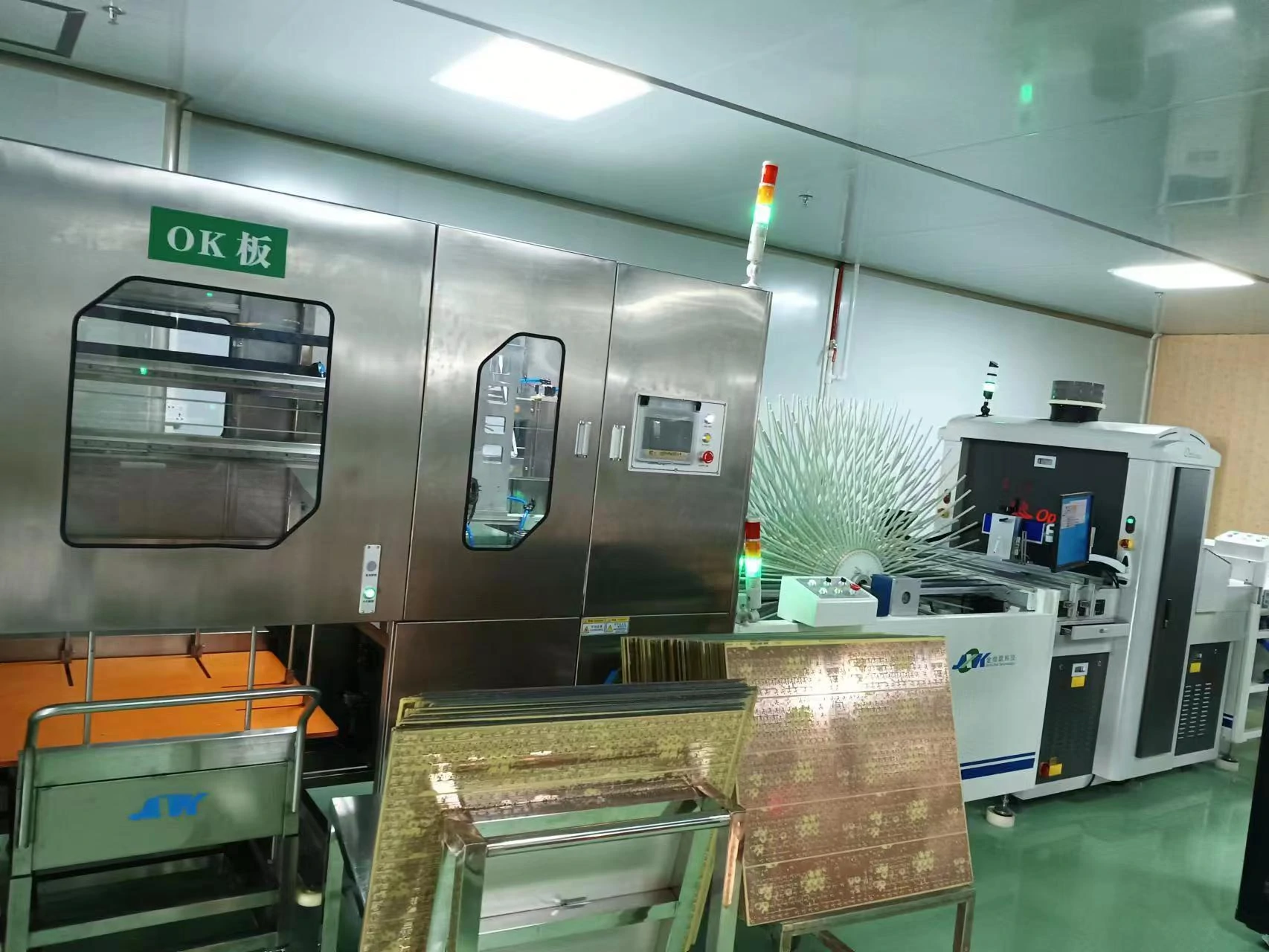

AOI Machine (ACF-QC-01)
Where the AOI Machine Fits in PCB Manufacturing
In a PCB production line, the AOI Machine operates in the optical inspection area of inspection and quality control equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
High-resolution imaging with reference-to-board defect comparison.
Defect classification and reporting for SPC and traceability.
Typical Applications
Used for inner-layer and final inspection and electrical test across high-reliability and high-volume production.
Integration and Configuration
The AOI Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The AOI Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$35,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the AOI Machine
Tell us your requirements for the AOI Machine (ACF-QC-01) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the AOI Machine used for?
The AOI Machine is used in the inspection and quality control equipment stage of PCB manufacturing, specifically for optical inspection. It is designed for consistent, production-grade results.
Which board types does the AOI Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the AOI Machine?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the AOI Machine automated?
It is supplied as automatic (pc/cnc controlled). It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the AOI Machine achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the AOI Machine controlled?
The AOI Machine uses a industrial pc + vision/software for recipe management, process monitoring and data logging.
How do I request a quotation for the AOI Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
