The 2D Measurement Machine (ACF-QC-10) is a machine used during measurement systems, part of the inspection and quality control equipment stage of PCB manufacturing. It balances precision, uptime and ease of maintenance for high-mix production.

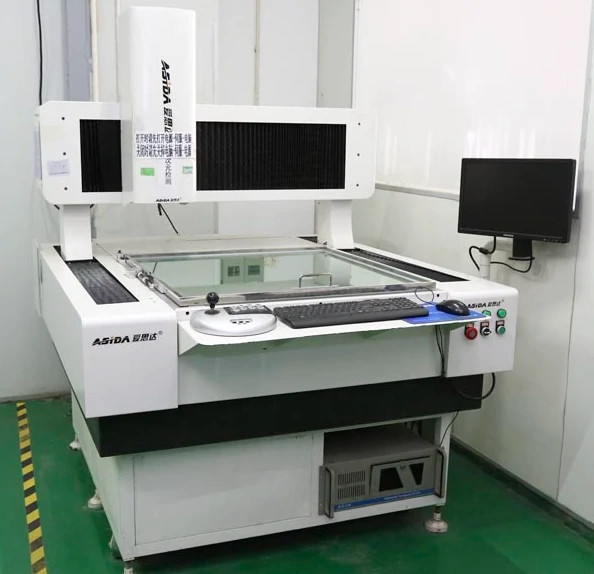

2D Measurement Machine (ACF-QC-10)
Where the 2D Measurement Machine Fits in PCB Manufacturing
In a PCB production line, the 2D Measurement Machine operates in the measurement systems area of inspection and quality control equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Fast handling for inline inspection at production speed.
Recipe management and process logging via the industrial pc + vision/software.
Supplied as semi-automatic, with options for line integration.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Typical Applications
Used for inner-layer and final inspection and electrical test across high-reliability and high-volume production.
Integration and Configuration
The 2D Measurement Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The 2D Measurement Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$35,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the 2D Measurement Machine
Tell us your requirements for the 2D Measurement Machine (ACF-QC-10) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the 2D Measurement Machine used for?
The 2D Measurement Machine is used in the inspection and quality control equipment stage of PCB manufacturing, specifically for measurement systems. It is designed for consistent, production-grade results.
Which board types does the 2D Measurement Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
Is the 2D Measurement Machine automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the 2D Measurement Machine achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the 2D Measurement Machine controlled?
The 2D Measurement Machine uses a industrial pc + vision/software for recipe management, process monitoring and data logging.
How do I request a quotation for the 2D Measurement Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
