The Automatic Packing Machine (ACF-FA-08) is industrial PCB manufacturing equipment used in the material handling step of factory automation systems. It is engineered for repeatable, production-grade results in printed-circuit-board fabrication.

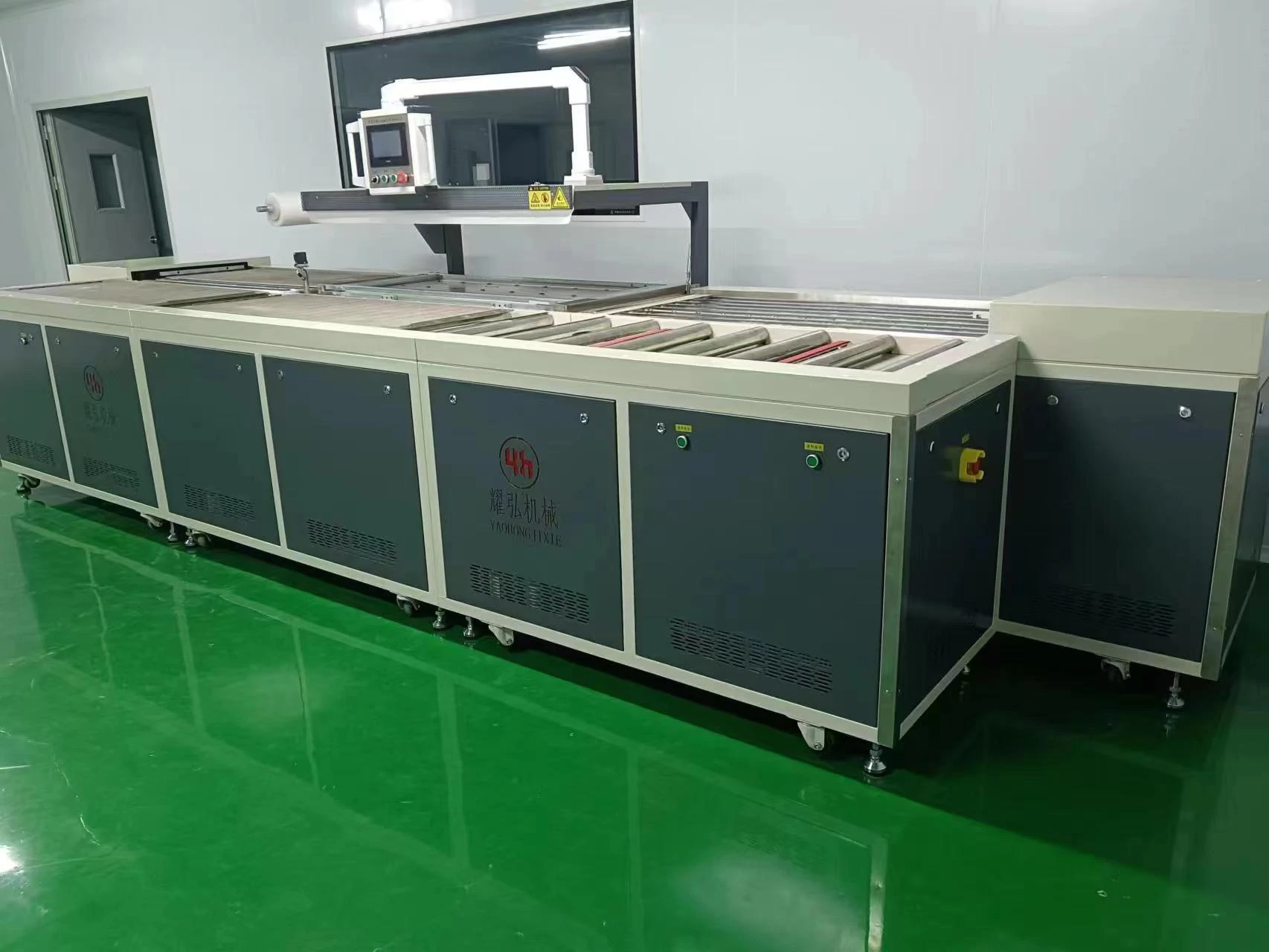

Automatic Packing Machine (ACF-FA-08)
Where the Automatic Packing Machine Fits in PCB Manufacturing
In a PCB production line, the Automatic Packing Machine operates in the material handling area of factory automation systems. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
MES/PLC integration for recipe control and production data.
Automatic loading, unloading and transfer between stages.
Scalable architecture to grow with production volume.
Recipe management and process logging via the plc + hmi touchscreen.
Supplied as automatic (pc/cnc controlled), with options for line integration.
Typical Applications
Used to connect process equipment with automated handling and MES-level control for high-volume fabrication.
Integration and Configuration
The Automatic Packing Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Automatic Packing Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$40,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Automatic Packing Machine
Tell us your requirements for the Automatic Packing Machine (ACF-FA-08) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Automatic Packing Machine used for?
The Automatic Packing Machine is used in the factory automation systems stage of PCB manufacturing, specifically for material handling. It is designed for consistent, production-grade results.
Which board types does the Automatic Packing Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
Is the Automatic Packing Machine automated?
It is supplied as automatic (pc/cnc controlled). It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Automatic Packing Machine achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Automatic Packing Machine controlled?
The Automatic Packing Machine uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Automatic Packing Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with factory automation systems. Contact us to add any of these to your equipment quotation.
