ACF-FA-05 is a Buffer / Temporary Storage Machine — PCB production equipment for the material handling process within factory automation systems. It is built for process stability, throughput and operator safety on the factory floor.

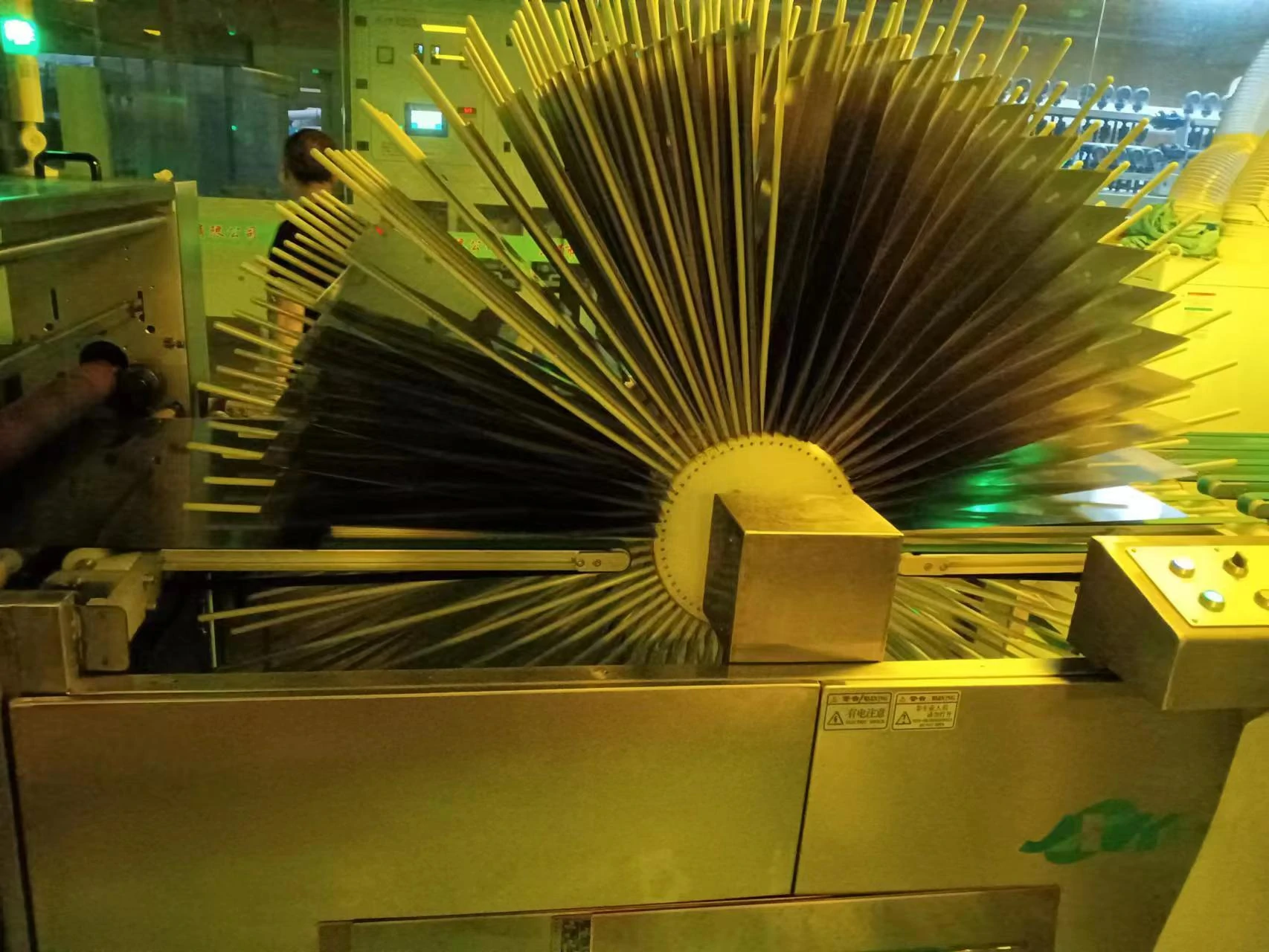

Buffer / Temporary Storage Machine (ACF-FA-05)
Where the Buffer / Temporary Storage Machine Fits in PCB Manufacturing
In a PCB production line, the Buffer / Temporary Storage Machine operates in the material handling area of factory automation systems. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
MES/PLC integration for recipe control and production data.
Automatic loading, unloading and transfer between stages.
Typical Applications
Used to connect process equipment with automated handling and MES-level control for high-volume fabrication.
Integration and Configuration
The Buffer / Temporary Storage Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Buffer / Temporary Storage Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$40,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Buffer / Temporary Storage Machine
Tell us your requirements for the Buffer / Temporary Storage Machine (ACF-FA-05) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Buffer / Temporary Storage Machine used for?
The Buffer / Temporary Storage Machine is used in the factory automation systems stage of PCB manufacturing, specifically for material handling. It is designed for consistent, production-grade results.
Which board types does the Buffer / Temporary Storage Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
Is the Buffer / Temporary Storage Machine automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Buffer / Temporary Storage Machine achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Buffer / Temporary Storage Machine controlled?
The Buffer / Temporary Storage Machine uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Buffer / Temporary Storage Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with factory automation systems. Contact us to add any of these to your equipment quotation.
