The Copper Extraction Equipment (ACF-EV-02) is industrial PCB manufacturing equipment used in the water treatment step of cleaning and environmental systems. It is engineered for repeatable, production-grade results in printed-circuit-board fabrication.

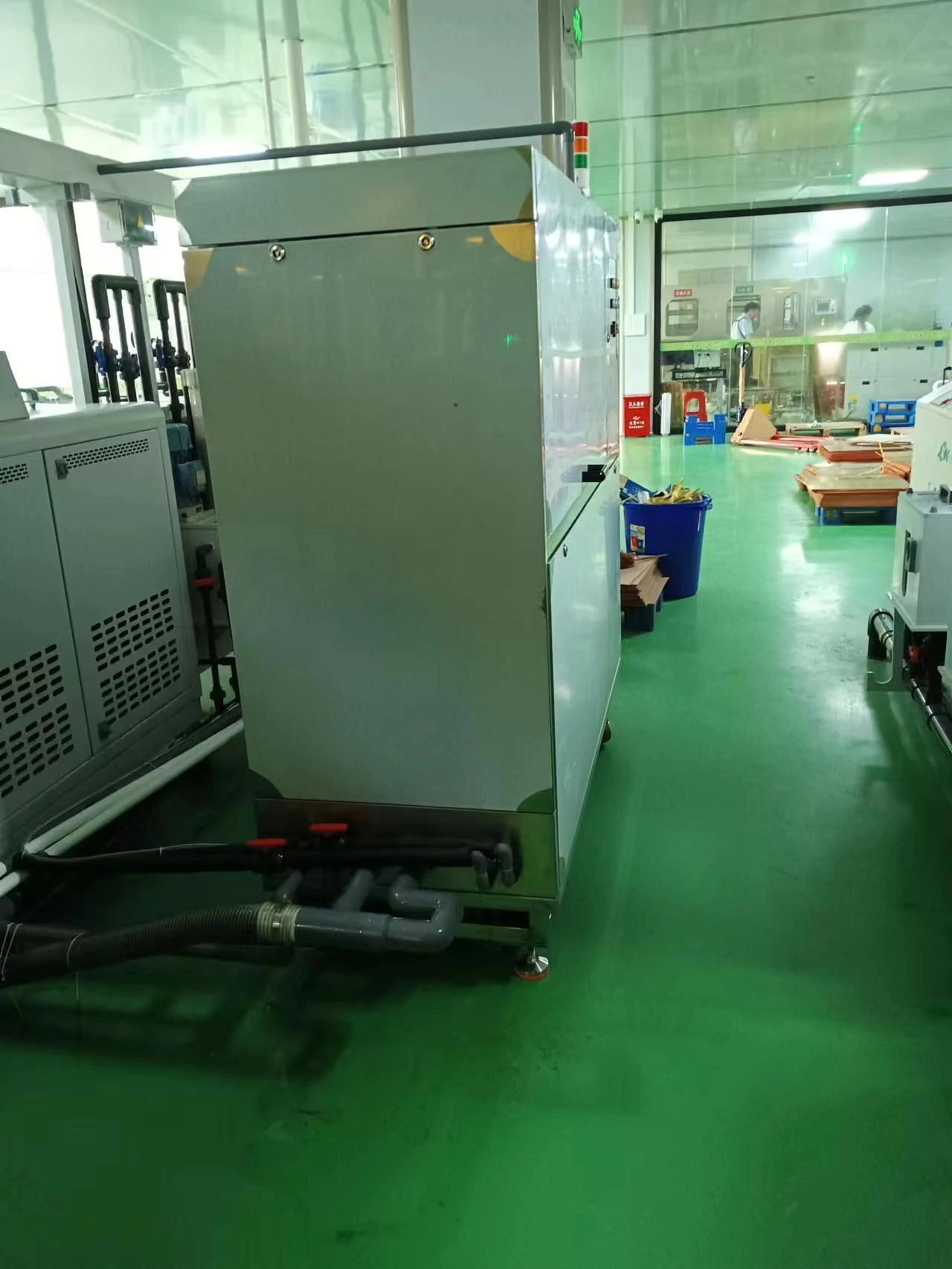

Copper Extraction Equipment (ACF-EV-02)
Where the Copper Extraction Equipment Fits in PCB Manufacturing
In a PCB production line, the Copper Extraction Equipment operates in the water treatment area of cleaning and environmental systems. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Reliable filtration and chemical handling for plant utilities.
Designed to support continuous, around-the-clock operation.
Recipe management and process logging via the plc + hmi touchscreen.
Supplied as semi-automatic, with options for line integration.
Typical Applications
Used throughout the facility to treat wastewater, supply DI water and manage exhaust for compliant operation.
Integration and Configuration
The Copper Extraction Equipment can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Copper Extraction Equipment is a non-standard, configured-to-order system. Pricing starts from approximately US$15,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Copper Extraction Equipment
Tell us your requirements for the Copper Extraction Equipment (ACF-EV-02) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Copper Extraction Equipment used for?
The Copper Extraction Equipment is used in the cleaning and environmental systems stage of PCB manufacturing, specifically for water treatment. It is designed for consistent, production-grade results.
Which board types does the Copper Extraction Equipment support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
Is the Copper Extraction Equipment automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Copper Extraction Equipment achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Copper Extraction Equipment controlled?
The Copper Extraction Equipment uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Copper Extraction Equipment?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with cleaning and environmental systems. Contact us to add any of these to your equipment quotation.
Filter Cartridges and Media
Replacement filtration media for water and air systems.
