The Copper Recovery System (ACF-EV-01) is a machine used during water treatment, part of the cleaning and environmental systems stage of PCB manufacturing. It balances precision, uptime and ease of maintenance for high-mix production.

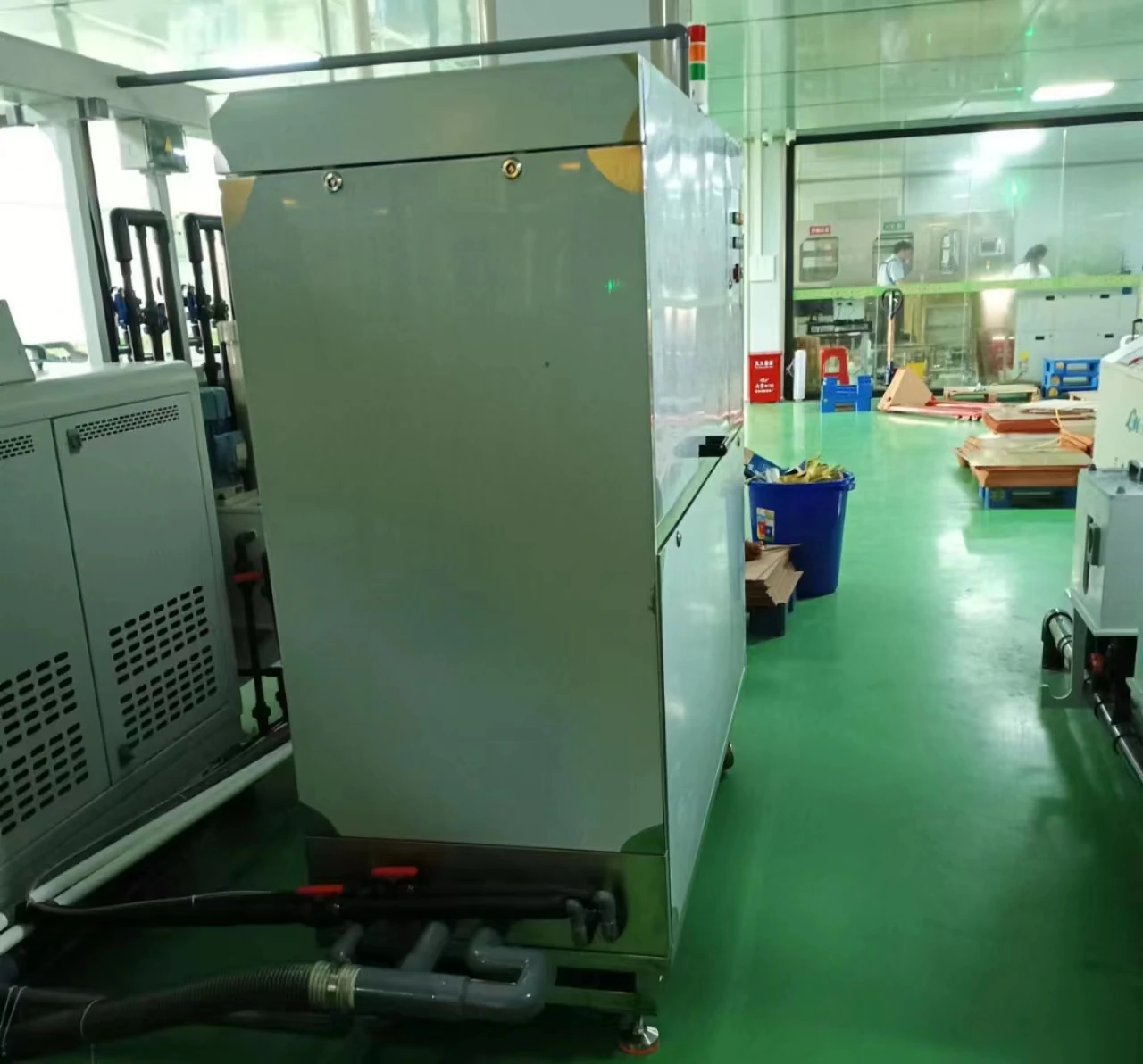

Copper Recovery System (ACF-EV-01)
Where the Copper Recovery System Fits in PCB Manufacturing
In a PCB production line, the Copper Recovery System operates in the water treatment area of cleaning and environmental systems. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Designed to support continuous, around-the-clock operation.
Recipe management and process logging via the plc + hmi touchscreen.
Supplied as semi-automatic, with options for line integration.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Typical Applications
Used throughout the facility to treat wastewater, supply DI water and manage exhaust for compliant operation.
Integration and Configuration
The Copper Recovery System can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Copper Recovery System is a non-standard, configured-to-order system. Pricing starts from approximately US$15,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Copper Recovery System
Tell us your requirements for the Copper Recovery System (ACF-EV-01) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Copper Recovery System used for?
The Copper Recovery System is used in the cleaning and environmental systems stage of PCB manufacturing, specifically for water treatment. It is designed for consistent, production-grade results.
Which board types does the Copper Recovery System support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
Is the Copper Recovery System automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Copper Recovery System achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Copper Recovery System controlled?
The Copper Recovery System uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Copper Recovery System?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with cleaning and environmental systems. Contact us to add any of these to your equipment quotation.
Filter Cartridges and Media
Replacement filtration media for water and air systems.
