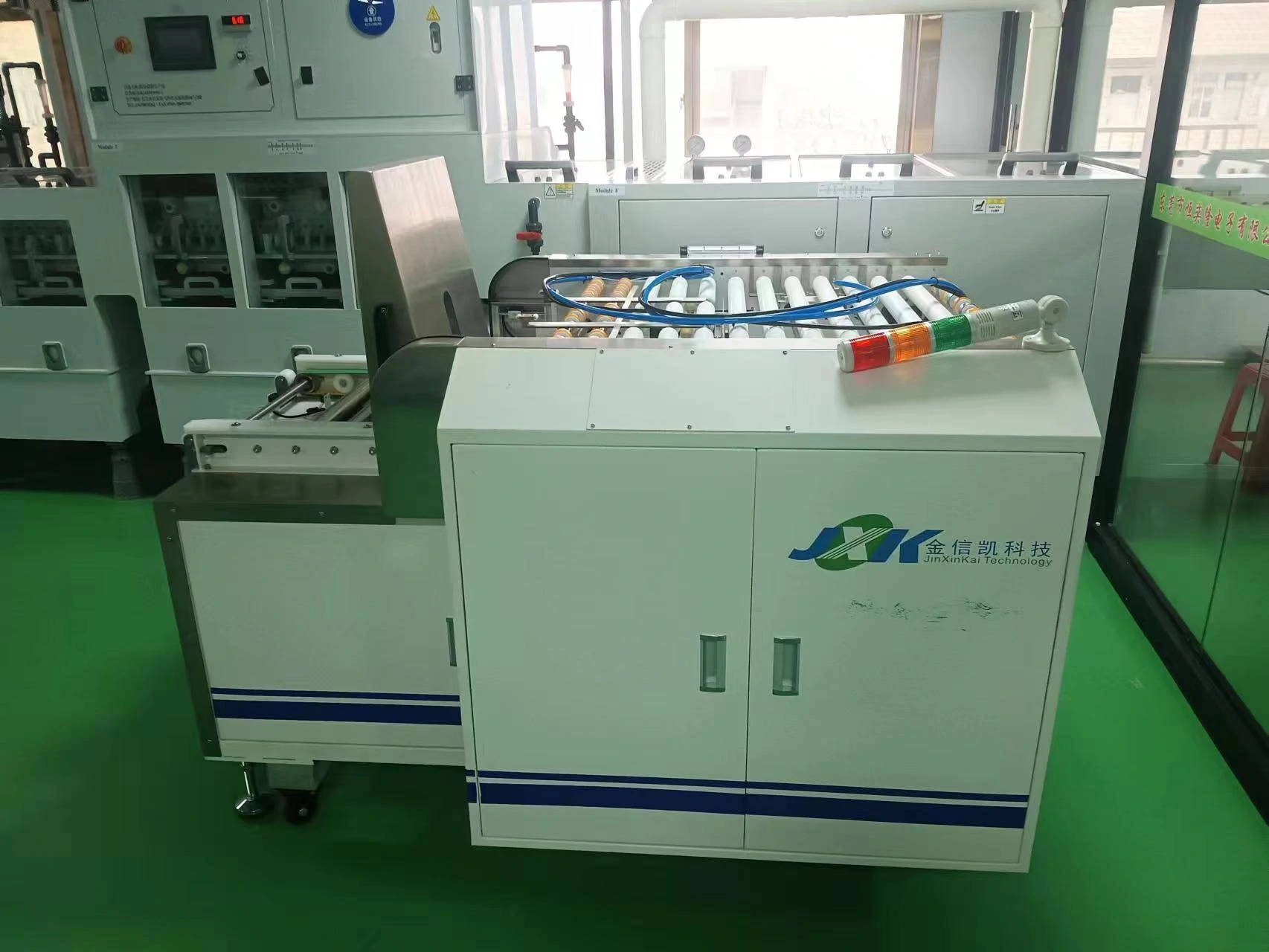

The Inclined Vertical Board Feeding Machine (ACF-FA-02) is a machine used during material handling, part of the factory automation systems stage of PCB manufacturing. It balances precision, uptime and ease of maintenance for high-mix production.
Where the Inclined Vertical Board Feeding Machine Fits in PCB Manufacturing
In a PCB production line, the Inclined Vertical Board Feeding Machine operates in the material handling area of factory automation systems. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
MES/PLC integration for recipe control and production data.
Automatic loading, unloading and transfer between stages.
Scalable architecture to grow with production volume.
Typical Applications
Used to connect process equipment with automated handling and MES-level control for high-volume fabrication.
Integration and Configuration
The Inclined Vertical Board Feeding Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Inclined Vertical Board Feeding Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$40,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Inclined Vertical Board Feeding Machine
Tell us your requirements for the Inclined Vertical Board Feeding Machine (ACF-FA-02) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Inclined Vertical Board Feeding Machine used for?
The Inclined Vertical Board Feeding Machine is used in the factory automation systems stage of PCB manufacturing, specifically for material handling. It is designed for consistent, production-grade results.
Which board types does the Inclined Vertical Board Feeding Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the Inclined Vertical Board Feeding Machine?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the Inclined Vertical Board Feeding Machine automated?
It is supplied as inline / automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Inclined Vertical Board Feeding Machine achieve?
Typical throughput is Up to 90 panels/hour, depending on panel size, recipe and board complexity.
How is the Inclined Vertical Board Feeding Machine controlled?
The Inclined Vertical Board Feeding Machine uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Inclined Vertical Board Feeding Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
