The Solder Mask Coating Machine (ACF-SM-01) is a machine used during solder mask, part of the solder mask and printing equipment stage of PCB manufacturing. It balances precision, uptime and ease of maintenance for high-mix production.

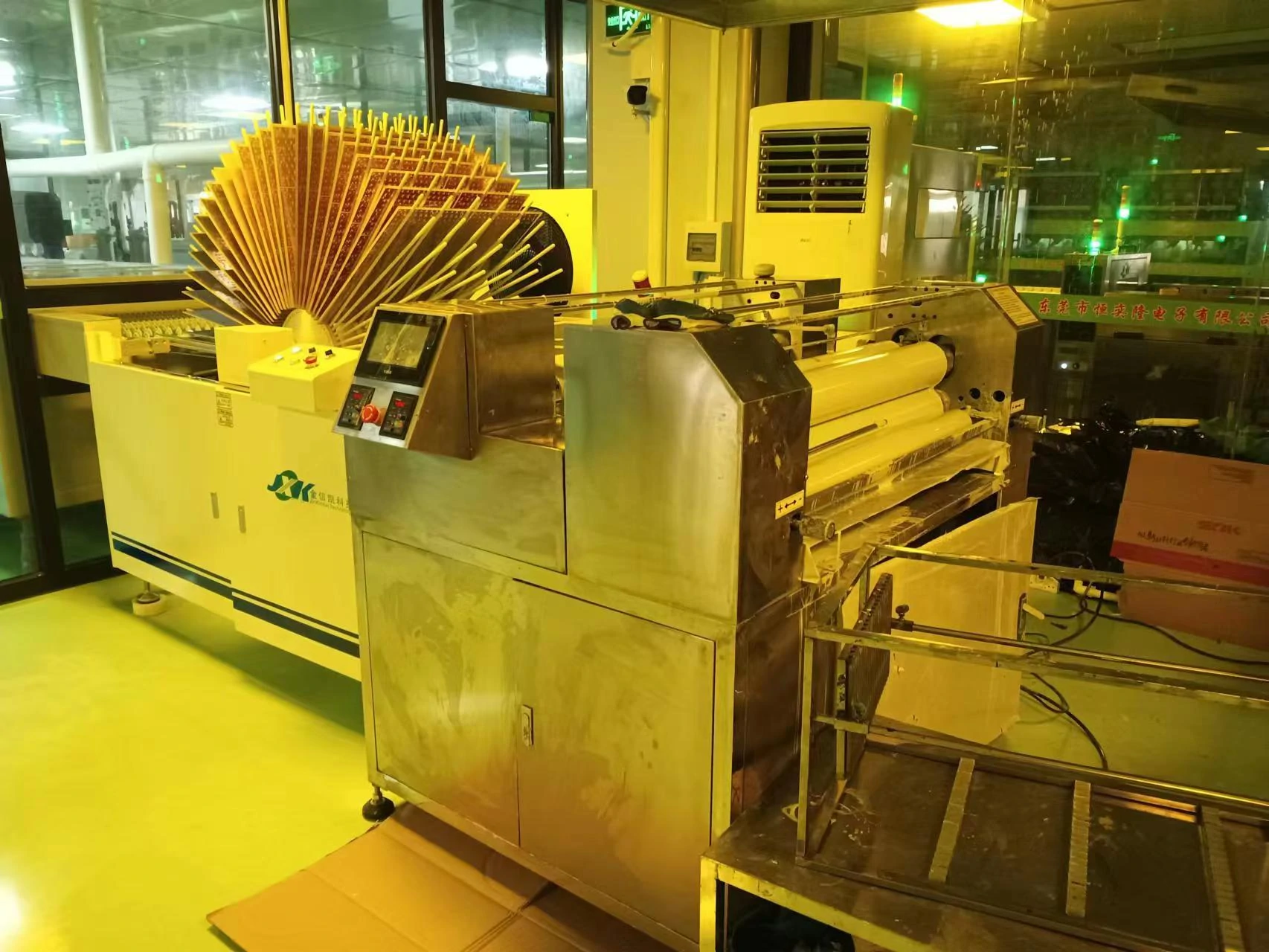

Solder Mask Coating Machine (ACF-SM-01)
Where the Solder Mask Coating Machine Fits in PCB Manufacturing
In a PCB production line, the Solder Mask Coating Machine operates in the solder mask area of solder mask and printing equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
Even coating thickness control for reliable solder-mask registration.
UV curing profile management for full cure without yellowing.
Fine-feature legend capability for dense boards.
Typical Applications
Used to apply and cure solder mask and legend on rigid and flex boards of all complexities.
Integration and Configuration
The Solder Mask Coating Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Solder Mask Coating Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$24,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Solder Mask Coating Machine
Tell us your requirements for the Solder Mask Coating Machine (ACF-SM-01) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Solder Mask Coating Machine used for?
The Solder Mask Coating Machine is used in the solder mask and printing equipment stage of PCB manufacturing, specifically for solder mask. It is designed for consistent, production-grade results.
Which board types does the Solder Mask Coating Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the Solder Mask Coating Machine?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the Solder Mask Coating Machine automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Solder Mask Coating Machine achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Solder Mask Coating Machine controlled?
The Solder Mask Coating Machine uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Solder Mask Coating Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with solder mask and printing equipment. Contact us to add any of these to your equipment quotation.
