Used for copper clad laminate processing, the Automatic Cutting and Edge Grinding Machine (ACF-MP-01) is material preparation equipment equipment from acfindustry.com. It is configured to deliver consistent quality across rigid, multilayer and HDI boards.

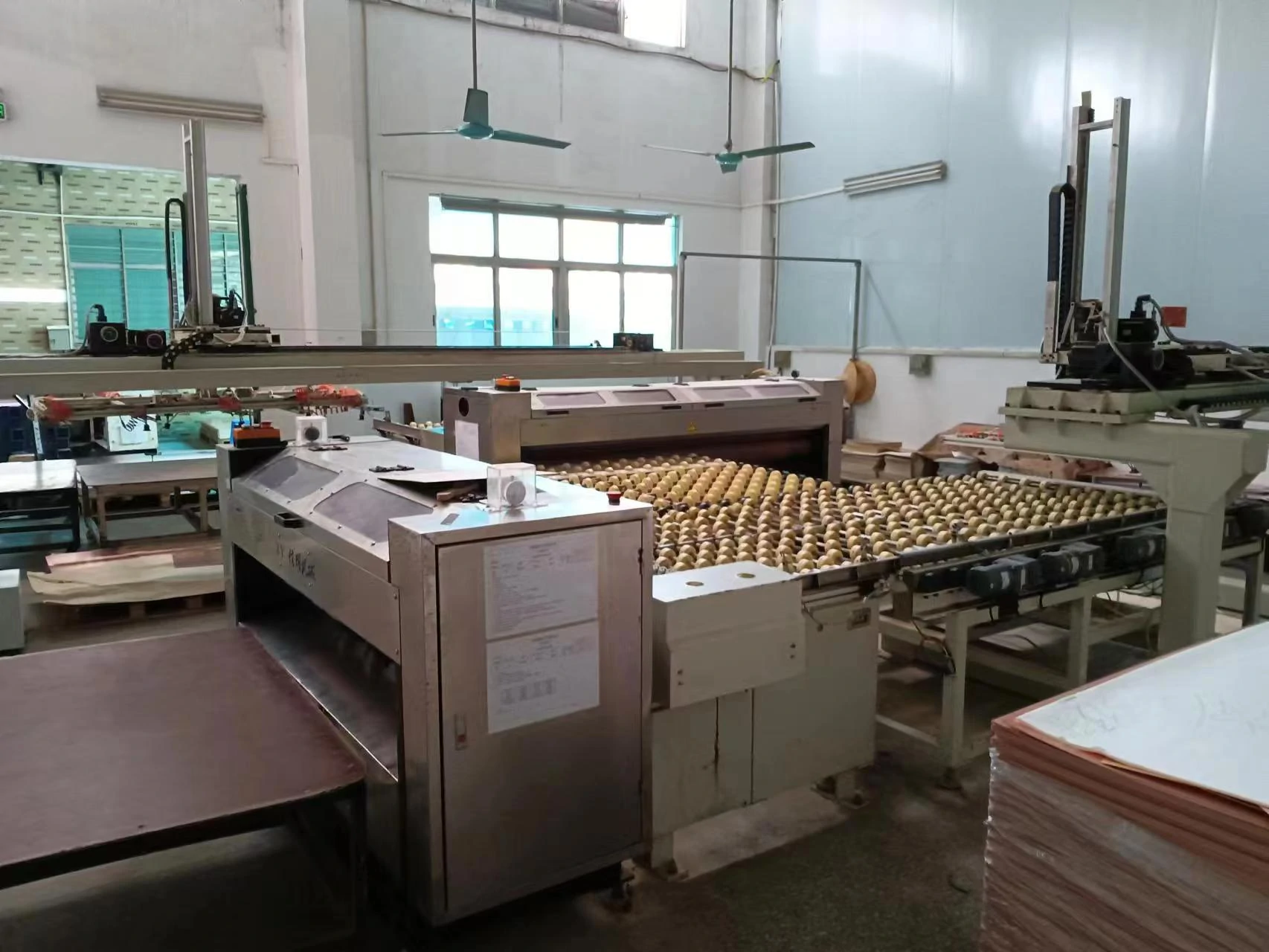

Automatic Cutting and Edge Grinding Machine (ACF-MP-01)
Where the Automatic Cutting and Edge Grinding Machine Fits in PCB Manufacturing
In a PCB production line, the Automatic Cutting and Edge Grinding Machine operates in the copper clad laminate processing area of material preparation equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Designed for low maintenance, fast changeover and high equipment uptime.
Accurate cutting and shearing for consistent panel dimensions.
Brushing and cleaning for reliable downstream adhesion.
Automatic loading to feed production lines.
Recipe management and process logging via the plc + hmi touchscreen.
Typical Applications
Used at the front of the line to cut, clean and prepare copper-clad laminate for all board types.
Integration and Configuration
The Automatic Cutting and Edge Grinding Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Automatic Cutting and Edge Grinding Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$12,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Automatic Cutting and Edge Grinding Machine
Tell us your requirements for the Automatic Cutting and Edge Grinding Machine (ACF-MP-01) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Automatic Cutting and Edge Grinding Machine used for?
The Automatic Cutting and Edge Grinding Machine is used in the material preparation equipment stage of PCB manufacturing, specifically for copper clad laminate processing. It is designed for consistent, production-grade results.
Which board types does the Automatic Cutting and Edge Grinding Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the Automatic Cutting and Edge Grinding Machine?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the Automatic Cutting and Edge Grinding Machine automated?
It is supplied as automatic (pc/cnc controlled). It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Automatic Cutting and Edge Grinding Machine achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Automatic Cutting and Edge Grinding Machine controlled?
The Automatic Cutting and Edge Grinding Machine uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Automatic Cutting and Edge Grinding Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with material preparation equipment. Contact us to add any of these to your equipment quotation.
