The Vertical Drying Oven (ACF-MP-06) is industrial PCB manufacturing equipment used in the surface preparation step of material preparation equipment. It is engineered for repeatable, production-grade results in printed-circuit-board fabrication.

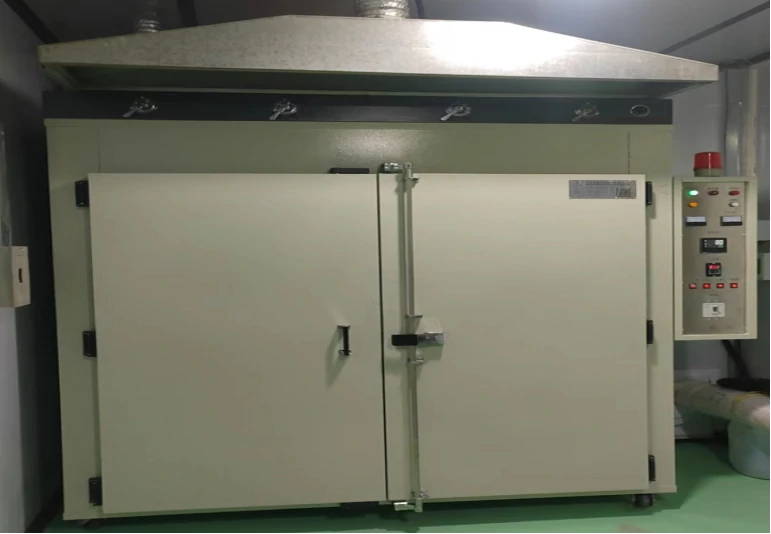

Vertical Drying Oven (ACF-MP-06)
Where the Vertical Drying Oven Fits in PCB Manufacturing
In a PCB production line, the Vertical Drying Oven operates in the surface preparation area of material preparation equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Supplied as inline / automatic, with options for line integration.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
Accurate cutting and shearing for consistent panel dimensions.
Typical Applications
Used at the front of the line to cut, clean and prepare copper-clad laminate for all board types.
Integration and Configuration
The Vertical Drying Oven can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Vertical Drying Oven is a non-standard, configured-to-order system. Pricing starts from approximately US$12,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Vertical Drying Oven
Tell us your requirements for the Vertical Drying Oven (ACF-MP-06) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Vertical Drying Oven used for?
The Vertical Drying Oven is used in the material preparation equipment stage of PCB manufacturing, specifically for surface preparation. It is designed for consistent, production-grade results.
Which board types does the Vertical Drying Oven support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the Vertical Drying Oven?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the Vertical Drying Oven automated?
It is supplied as inline / automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Vertical Drying Oven achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Vertical Drying Oven controlled?
The Vertical Drying Oven uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Vertical Drying Oven?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with material preparation equipment. Contact us to add any of these to your equipment quotation.
