ACF-IM-01 is a Dry Film Preheating Machine — PCB production equipment for the dry film lamination process within imaging and photo process equipment. It is built for process stability, throughput and operator safety on the factory floor.

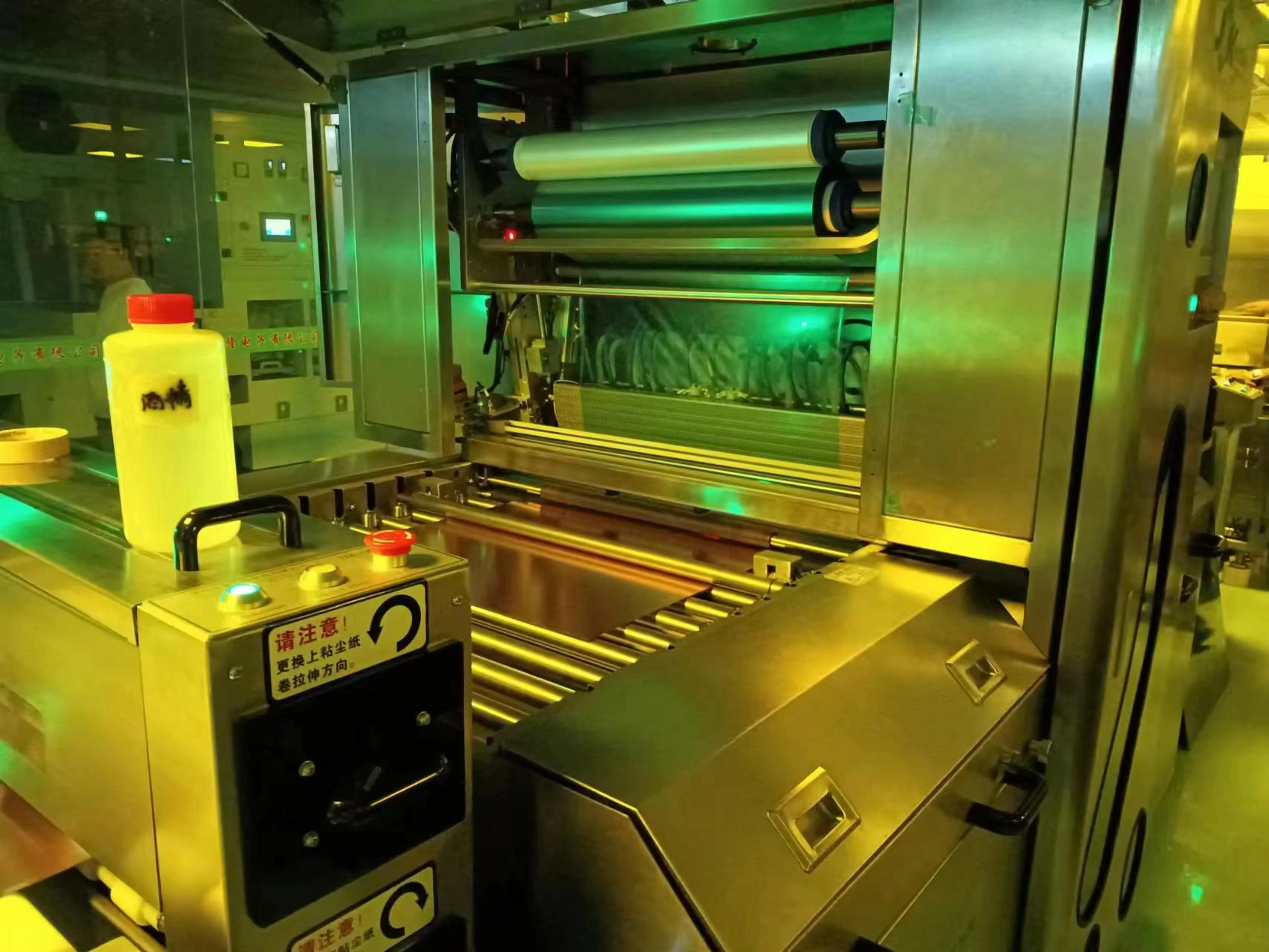

Dry Film Preheating Machine (ACF-IM-01)
Where the Dry Film Preheating Machine Fits in PCB Manufacturing
In a PCB production line, the Dry Film Preheating Machine operates in the dry film lamination area of imaging and photo process equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
High-resolution exposure for fine line and space definition.
Vacuum draw-down for intimate film-to-panel contact.
Typical Applications
Used to transfer circuit patterns for rigid, flex and HDI boards, including fine-feature and high-density designs.
Integration and Configuration
The Dry Film Preheating Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Dry Film Preheating Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$28,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Dry Film Preheating Machine
Tell us your requirements for the Dry Film Preheating Machine (ACF-IM-01) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Dry Film Preheating Machine used for?
The Dry Film Preheating Machine is used in the imaging and photo process equipment stage of PCB manufacturing, specifically for dry film lamination. It is designed for consistent, production-grade results.
Which board types does the Dry Film Preheating Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the Dry Film Preheating Machine?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the Dry Film Preheating Machine automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Dry Film Preheating Machine achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Dry Film Preheating Machine controlled?
The Dry Film Preheating Machine uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Dry Film Preheating Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with imaging and photo process equipment. Contact us to add any of these to your equipment quotation.
Dry Film Photoresist
Aqueous dry-film resist in a range of thicknesses.
Phototools / Films
Silver-halide or laser phototools for image transfer.
