Used for legend printing, the Dual-Table Screen Printing Machine (ACF-SM-07) is solder mask and printing equipment equipment from acfindustry.com. It is configured to deliver consistent quality across rigid, multilayer and HDI boards.

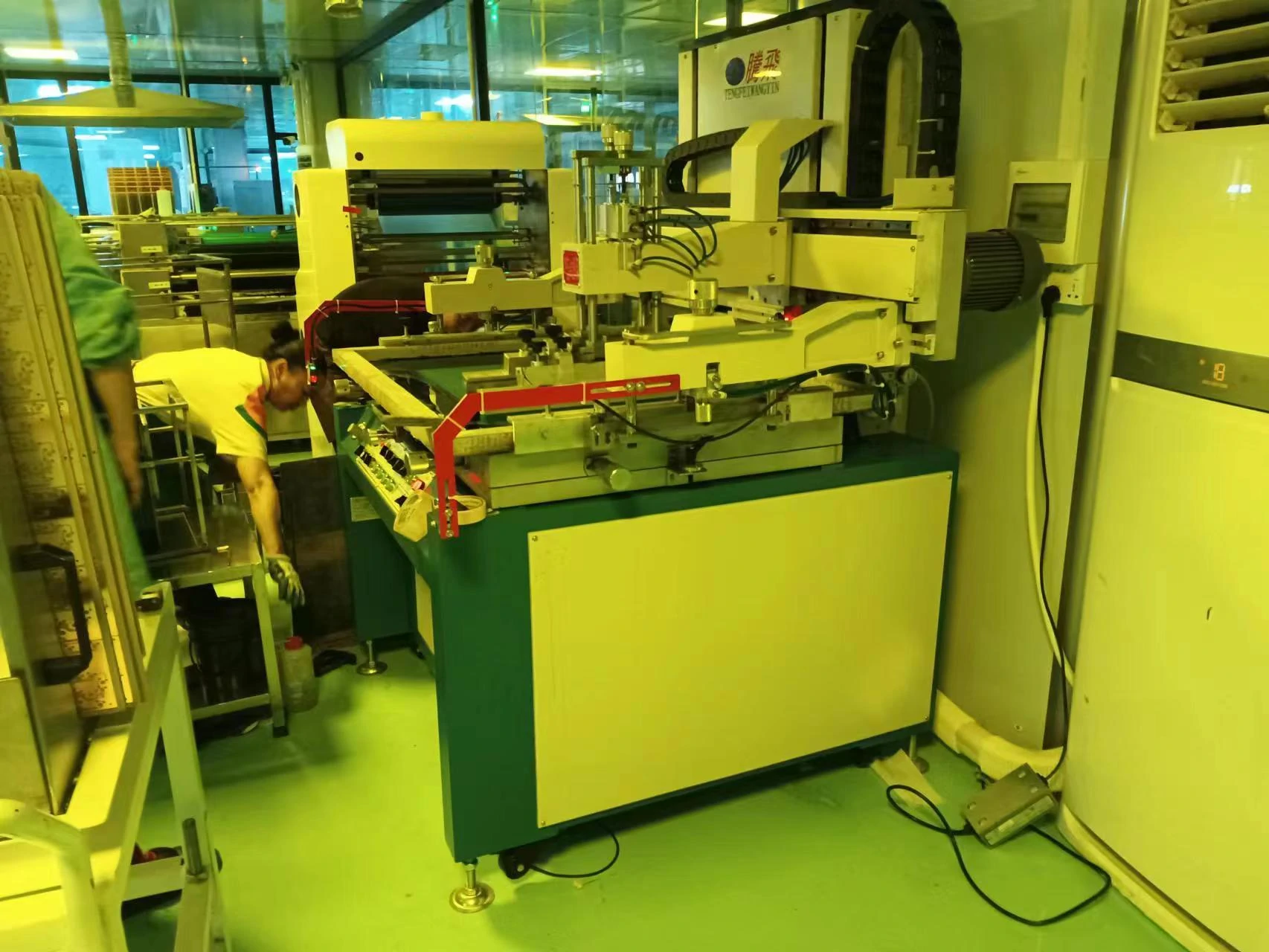

Dual-Table Screen Printing Machine (ACF-SM-07)
Where the Dual-Table Screen Printing Machine Fits in PCB Manufacturing
In a PCB production line, the Dual-Table Screen Printing Machine operates in the legend printing area of solder mask and printing equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Recipe management and process logging via the plc + hmi touchscreen.
Supplied as semi-automatic, with options for line integration.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
Typical Applications
Used to apply and cure solder mask and legend on rigid and flex boards of all complexities.
Integration and Configuration
The Dual-Table Screen Printing Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Dual-Table Screen Printing Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$24,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Dual-Table Screen Printing Machine
Tell us your requirements for the Dual-Table Screen Printing Machine (ACF-SM-07) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Dual-Table Screen Printing Machine used for?
The Dual-Table Screen Printing Machine is used in the solder mask and printing equipment stage of PCB manufacturing, specifically for legend printing. It is designed for consistent, production-grade results.
Which board types does the Dual-Table Screen Printing Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the Dual-Table Screen Printing Machine?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the Dual-Table Screen Printing Machine automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Dual-Table Screen Printing Machine achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Dual-Table Screen Printing Machine controlled?
The Dual-Table Screen Printing Machine uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Dual-Table Screen Printing Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
