The Inkjet Legend Printer (9-Head) (ACF-SM-08) is a machine used during legend printing, part of the solder mask and printing equipment stage of PCB manufacturing. It balances precision, uptime and ease of maintenance for high-mix production.

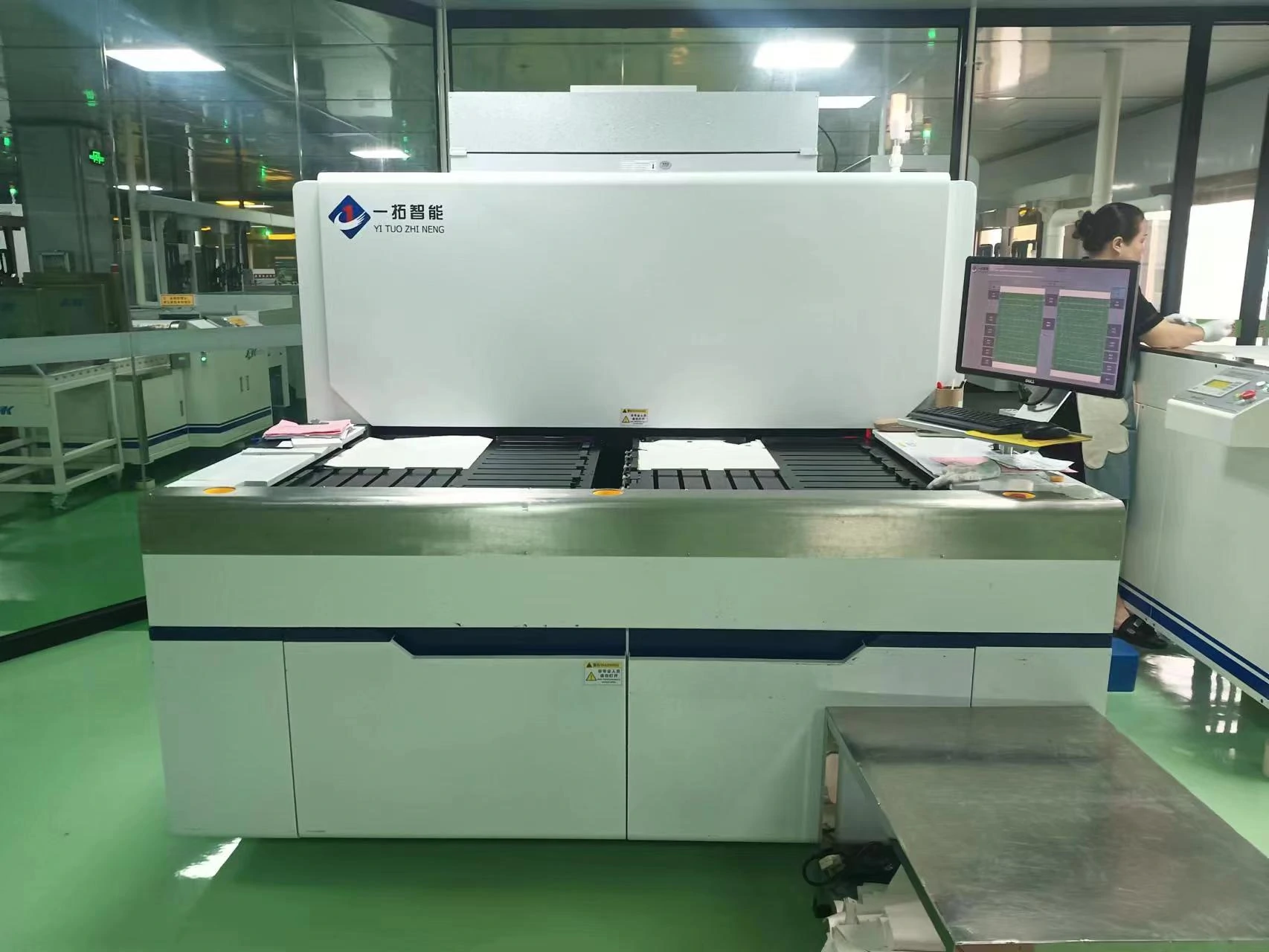

Inkjet Legend Printer (9-Head) (ACF-SM-08)
Where the Inkjet Legend Printer (9-Head) Fits in PCB Manufacturing
In a PCB production line, the Inkjet Legend Printer (9-Head) operates in the legend printing area of solder mask and printing equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Recipe management and process logging via the plc + hmi touchscreen.
Supplied as semi-automatic, with options for line integration.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Typical Applications
Used to apply and cure solder mask and legend on rigid and flex boards of all complexities.
Integration and Configuration
The Inkjet Legend Printer (9-Head) can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Inkjet Legend Printer (9-Head) is a non-standard, configured-to-order system. Pricing starts from approximately US$24,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Inkjet Legend Printer (9-Head)
Tell us your requirements for the Inkjet Legend Printer (9-Head) (ACF-SM-08) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Inkjet Legend Printer (9-Head) used for?
The Inkjet Legend Printer (9-Head) is used in the solder mask and printing equipment stage of PCB manufacturing, specifically for legend printing. It is designed for consistent, production-grade results.
Which board types does the Inkjet Legend Printer (9-Head) support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
Is the Inkjet Legend Printer (9-Head) automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Inkjet Legend Printer (9-Head) achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Inkjet Legend Printer (9-Head) controlled?
The Inkjet Legend Printer (9-Head) uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Inkjet Legend Printer (9-Head)?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
