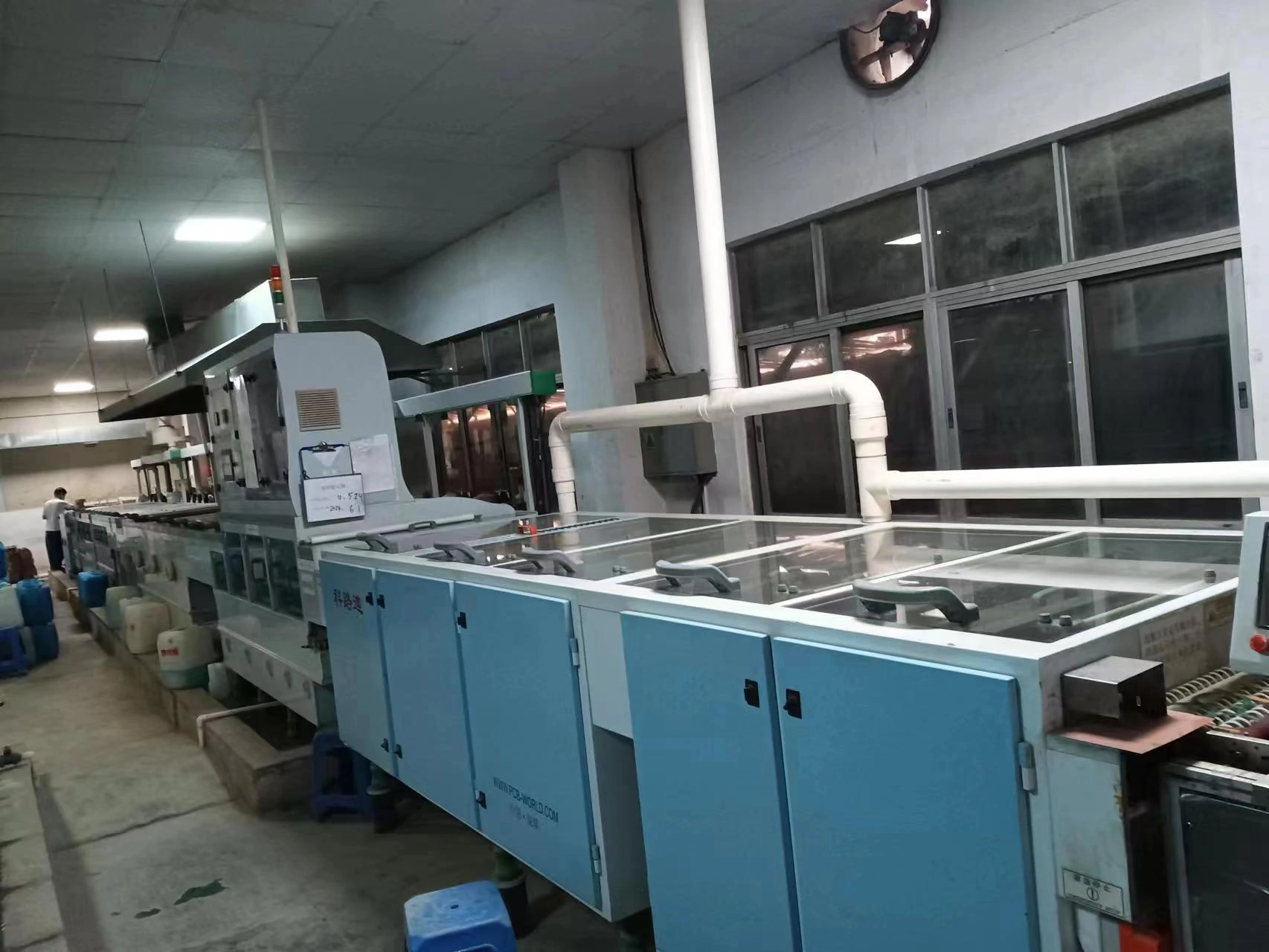

The OSP Coating Line (ACF-SF-06) is industrial PCB manufacturing equipment used in the chemical surface finish step of surface finishing equipment. It is engineered for repeatable, production-grade results in printed-circuit-board fabrication.
OSP Coating Line (ACF-SF-06)
Where the OSP Coating Line Fits in PCB Manufacturing
In a PCB production line, the OSP Coating Line operates in the chemical surface finish area of surface finishing equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Supplied as inline / automatic, with options for line integration.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
Controlled bath chemistry for consistent finish thickness.
Typical Applications
Used to apply protective, solderable finishes for boards destined for SMT and through-hole assembly.
Integration and Configuration
The OSP Coating Line can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The OSP Coating Line is a non-standard, configured-to-order system. Pricing starts from approximately US$30,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the OSP Coating Line
Tell us your requirements for the OSP Coating Line (ACF-SF-06) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the OSP Coating Line used for?
The OSP Coating Line is used in the surface finishing equipment stage of PCB manufacturing, specifically for chemical surface finish. It is designed for consistent, production-grade results.
Which board types does the OSP Coating Line support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the OSP Coating Line?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the OSP Coating Line automated?
It is supplied as inline / automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the OSP Coating Line achieve?
Typical throughput is Up to 90 panels/hour, depending on panel size, recipe and board complexity.
How is the OSP Coating Line controlled?
The OSP Coating Line uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the OSP Coating Line?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with surface finishing equipment. Contact us to add any of these to your equipment quotation.
