ACF-SM-04 is a Solder Mask Developing Line — PCB production equipment for the solder mask process within solder mask and printing equipment. It is built for process stability, throughput and operator safety on the factory floor.

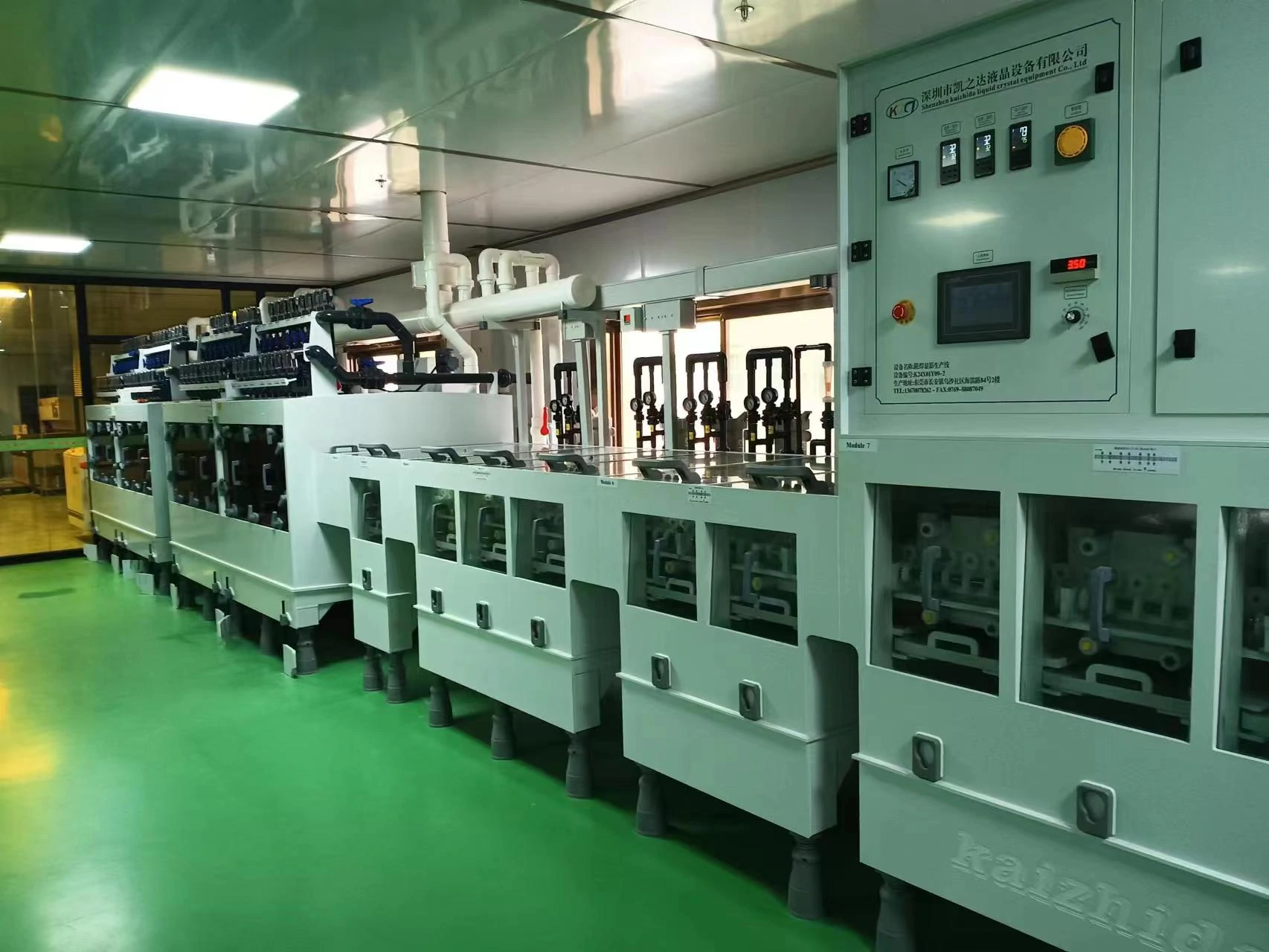

Solder Mask Developing Line (ACF-SM-04)
Where the Solder Mask Developing Line Fits in PCB Manufacturing
In a PCB production line, the Solder Mask Developing Line operates in the solder mask area of solder mask and printing equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
UV curing profile management for full cure without yellowing.
Fine-feature legend capability for dense boards.
Recipe management and process logging via the plc + hmi touchscreen.
Supplied as inline / automatic, with options for line integration.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Typical Applications
Used to apply and cure solder mask and legend on rigid and flex boards of all complexities.
Integration and Configuration
The Solder Mask Developing Line can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Solder Mask Developing Line is a non-standard, configured-to-order system. Pricing starts from approximately US$24,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Solder Mask Developing Line
Tell us your requirements for the Solder Mask Developing Line (ACF-SM-04) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Solder Mask Developing Line used for?
The Solder Mask Developing Line is used in the solder mask and printing equipment stage of PCB manufacturing, specifically for solder mask. It is designed for consistent, production-grade results.
Which board types does the Solder Mask Developing Line support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the Solder Mask Developing Line?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the Solder Mask Developing Line automated?
It is supplied as inline / automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Solder Mask Developing Line achieve?
Typical throughput is Up to 90 panels/hour, depending on panel size, recipe and board complexity.
How is the Solder Mask Developing Line controlled?
The Solder Mask Developing Line uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Solder Mask Developing Line?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with solder mask and printing equipment. Contact us to add any of these to your equipment quotation.
