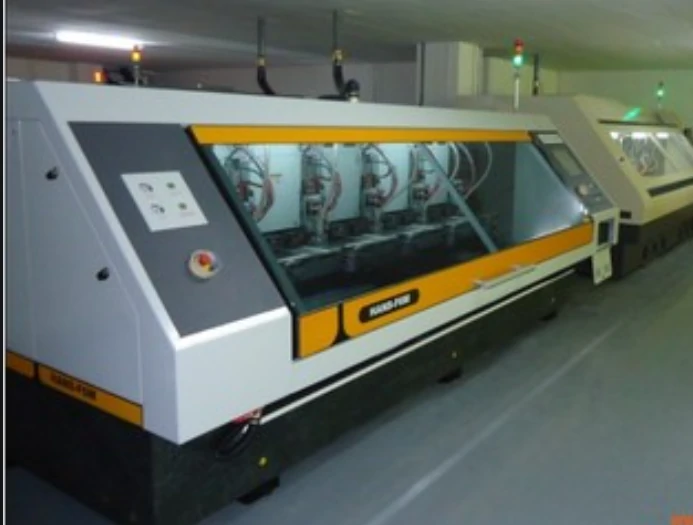

Used for mechanical drilling, the Two-Head CNC Drilling Machine (2-Axis) (ACF-DR-02) is drilling and via formation equipment equipment from acfindustry.com. It is configured to deliver consistent quality across rigid, multilayer and HDI boards.
Where the Two-Head CNC Drilling Machine (2-Axis) Fits in PCB Manufacturing
In a PCB production line, the Two-Head CNC Drilling Machine (2-Axis) operates in the mechanical drilling area of drilling and via formation equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Designed for low maintenance, fast changeover and high equipment uptime.
High-spindle-speed drilling with automatic tool change and broken-tool detection.
Vision-based registration for accurate hole positioning.
Dust extraction and backup-board handling for clean hole walls.
Recipe management and process logging via the cnc controller.
Typical Applications
Used for through-holes and microvias in multilayer and HDI boards across consumer, automotive and telecom applications.
Integration and Configuration
The Two-Head CNC Drilling Machine (2-Axis) can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Two-Head CNC Drilling Machine (2-Axis) is a non-standard, configured-to-order system. Pricing starts from approximately US$45,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Two-Head CNC Drilling Machine (2-Axis)
Tell us your requirements for the Two-Head CNC Drilling Machine (2-Axis) (ACF-DR-02) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Two-Head CNC Drilling Machine (2-Axis) used for?
The Two-Head CNC Drilling Machine (2-Axis) is used in the drilling and via formation equipment stage of PCB manufacturing, specifically for mechanical drilling. It is designed for consistent, production-grade results.
Which board types does the Two-Head CNC Drilling Machine (2-Axis) support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the Two-Head CNC Drilling Machine (2-Axis)?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the Two-Head CNC Drilling Machine (2-Axis) automated?
It is supplied as automatic (pc/cnc controlled). It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Two-Head CNC Drilling Machine (2-Axis) achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Two-Head CNC Drilling Machine (2-Axis) controlled?
The Two-Head CNC Drilling Machine (2-Axis) uses a cnc controller for recipe management, process monitoring and data logging.
How do I request a quotation for the Two-Head CNC Drilling Machine (2-Axis)?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with drilling and via formation equipment. Contact us to add any of these to your equipment quotation.
Carbide Micro Drill Bits
Tungsten-carbide drill bits, 0.10-6.50 mm, for mechanical drilling.
Aluminum Entry Boards
Entry foils that improve hole quality and reduce burring.
Phenolic Backup Boards
Backup material protecting the drill table and hole exit.
