The CCD Exposure Machine (ACF-IM-05) is industrial PCB manufacturing equipment used in the exposure systems step of imaging and photo process equipment. It is engineered for repeatable, production-grade results in printed-circuit-board fabrication.

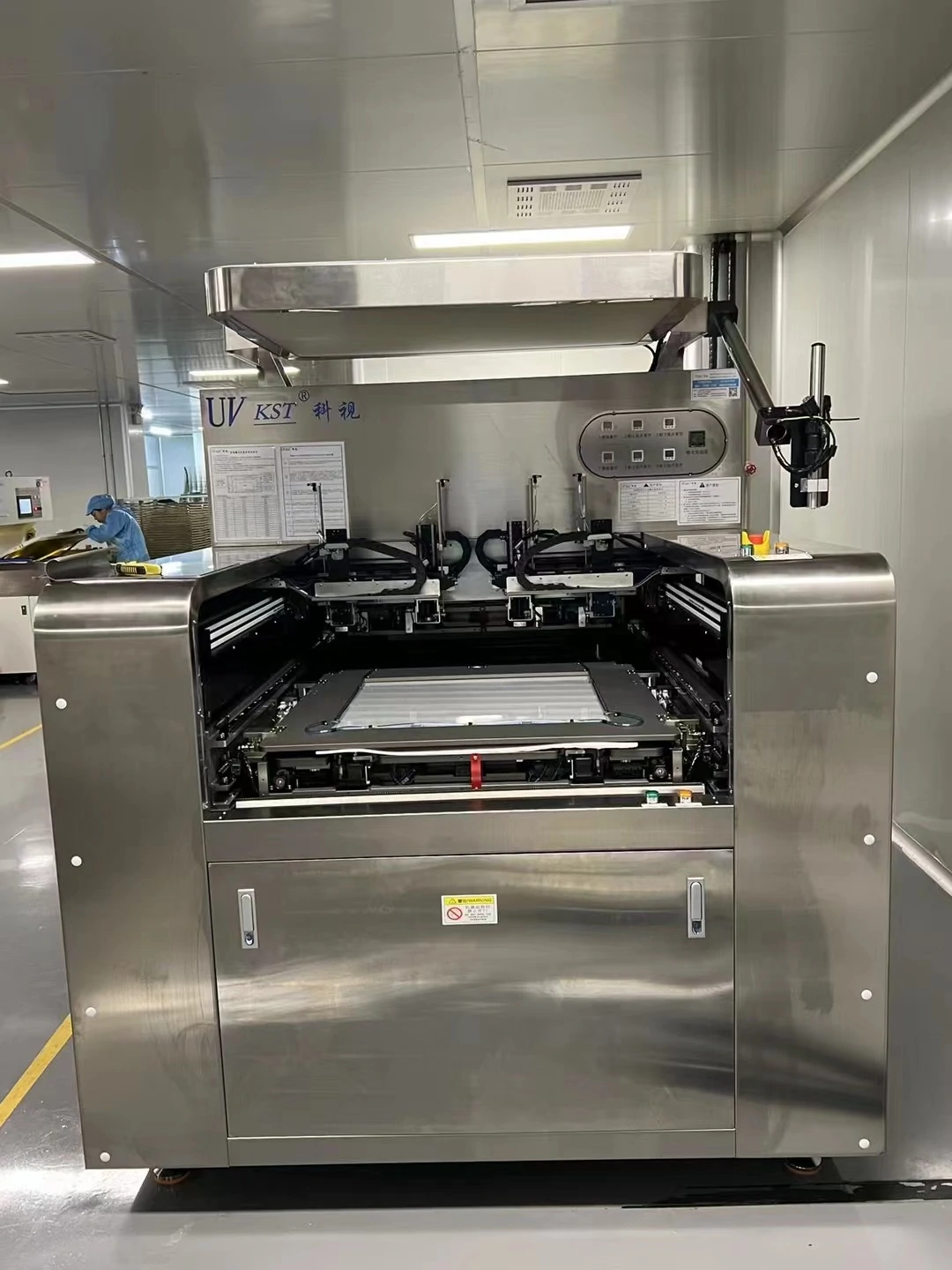

CCD Exposure Machine (ACF-IM-05)
Where the CCD Exposure Machine Fits in PCB Manufacturing
In a PCB production line, the CCD Exposure Machine operates in the exposure systems area of imaging and photo process equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Supplied as automatic (pc/cnc controlled), with options for line integration.
Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
High-resolution exposure for fine line and space definition.
Typical Applications
Used to transfer circuit patterns for rigid, flex and HDI boards, including fine-feature and high-density designs.
Integration and Configuration
The CCD Exposure Machine can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The CCD Exposure Machine is a non-standard, configured-to-order system. Pricing starts from approximately US$28,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the CCD Exposure Machine
Tell us your requirements for the CCD Exposure Machine (ACF-IM-05) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the CCD Exposure Machine used for?
The CCD Exposure Machine is used in the imaging and photo process equipment stage of PCB manufacturing, specifically for exposure systems. It is designed for consistent, production-grade results.
Which board types does the CCD Exposure Machine support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
What is the maximum panel size for the CCD Exposure Machine?
The standard maximum panel size is 610 x 610 mm. Larger or custom panel handling can be quoted on request.
Is the CCD Exposure Machine automated?
It is supplied as automatic (pc/cnc controlled). It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the CCD Exposure Machine achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the CCD Exposure Machine controlled?
The CCD Exposure Machine uses a industrial pc + vision/software for recipe management, process monitoring and data logging.
How do I request a quotation for the CCD Exposure Machine?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with imaging and photo process equipment. Contact us to add any of these to your equipment quotation.
Dry Film Photoresist
Aqueous dry-film resist in a range of thicknesses.
Phototools / Films
Silver-halide or laser phototools for image transfer.
