The Photoplotter (Film Production) (ACF-IM-06) is a machine used during exposure systems, part of the imaging and photo process equipment stage of PCB manufacturing. It balances precision, uptime and ease of maintenance for high-mix production.

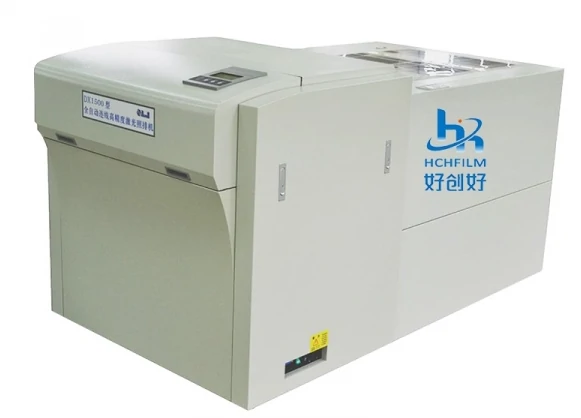

Photoplotter (Film Production) (ACF-IM-06)
Where the Photoplotter (Film Production) Fits in PCB Manufacturing
In a PCB production line, the Photoplotter (Film Production) operates in the exposure systems area of imaging and photo process equipment. Correct integration with the upstream and downstream stages is essential to overall yield, cycle time and cost per panel.
Safety interlocks, alarms and guarding designed for a production environment.
Designed for low maintenance, fast changeover and high equipment uptime.
High-resolution exposure for fine line and space definition.
Vacuum draw-down for intimate film-to-panel contact.
Registration alignment to hold layer-to-layer accuracy.
Typical Applications
Used to transfer circuit patterns for rigid, flex and HDI boards, including fine-feature and high-density designs.
Integration and Configuration
The Photoplotter (Film Production) can be supplied as a standalone unit or integrated into a conveyorized, automated line. Panel-size handling, control software, throughput and material compatibility are configured to match your production mix. Because this is a configured-to-order system, the specification is finalized with our engineers before quotation.
Pricing
The Photoplotter (Film Production) is a non-standard, configured-to-order system. Pricing starts from approximately US$28,000 for a base configuration and is finalized by quotation based on your panel size, automation level and throughput requirements.
Request a Quotation for the Photoplotter (Film Production)
Tell us your requirements for the Photoplotter (Film Production) (ACF-IM-06) and our engineers will respond within one business day with a tailored configuration and price.
Frequently Asked Questions
What is the Photoplotter (Film Production) used for?
The Photoplotter (Film Production) is used in the imaging and photo process equipment stage of PCB manufacturing, specifically for exposure systems. It is designed for consistent, production-grade results.
Which board types does the Photoplotter (Film Production) support?
It supports Rigid, multilayer, HDI (flex / rigid-flex optional). The exact configuration can be tailored to your product mix.
Is the Photoplotter (Film Production) automated?
It is supplied as semi-automatic. It can be operated standalone or integrated into a conveyorized line with upstream and downstream handling.
What throughput can the Photoplotter (Film Production) achieve?
Typical throughput is 30-60 panels/hour, depending on panel size, recipe and board complexity.
How is the Photoplotter (Film Production) controlled?
The Photoplotter (Film Production) uses a plc + hmi touchscreen for recipe management, process monitoring and data logging.
How do I request a quotation for the Photoplotter (Film Production)?
Use the equipment finder on this page to confirm your process stage, board type and throughput, then submit the inquiry form. An engineer from acfindustry.com will respond within one business day.
Accessories & Consumables
Compatible consumables and spare parts commonly supplied with imaging and photo process equipment. Contact us to add any of these to your equipment quotation.
Dry Film Photoresist
Aqueous dry-film resist in a range of thicknesses.
Phototools / Films
Silver-halide or laser phototools for image transfer.
